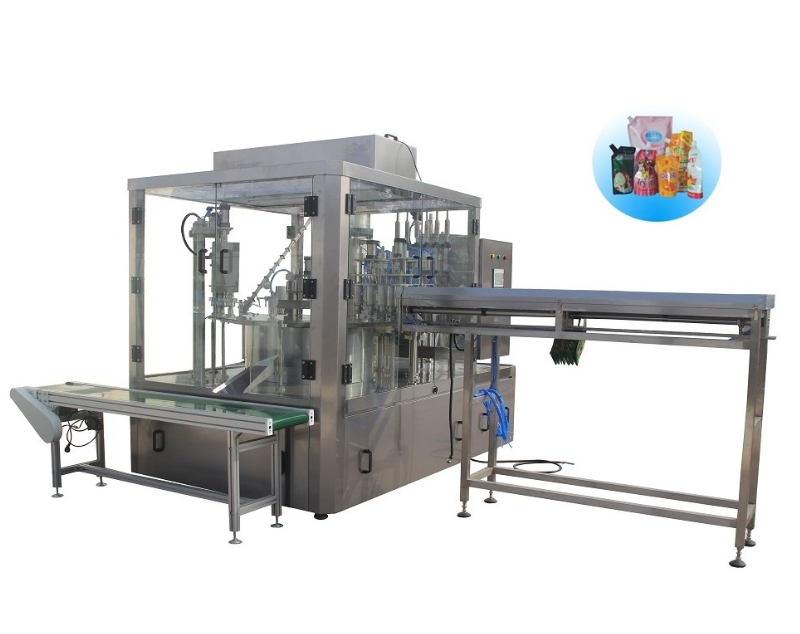

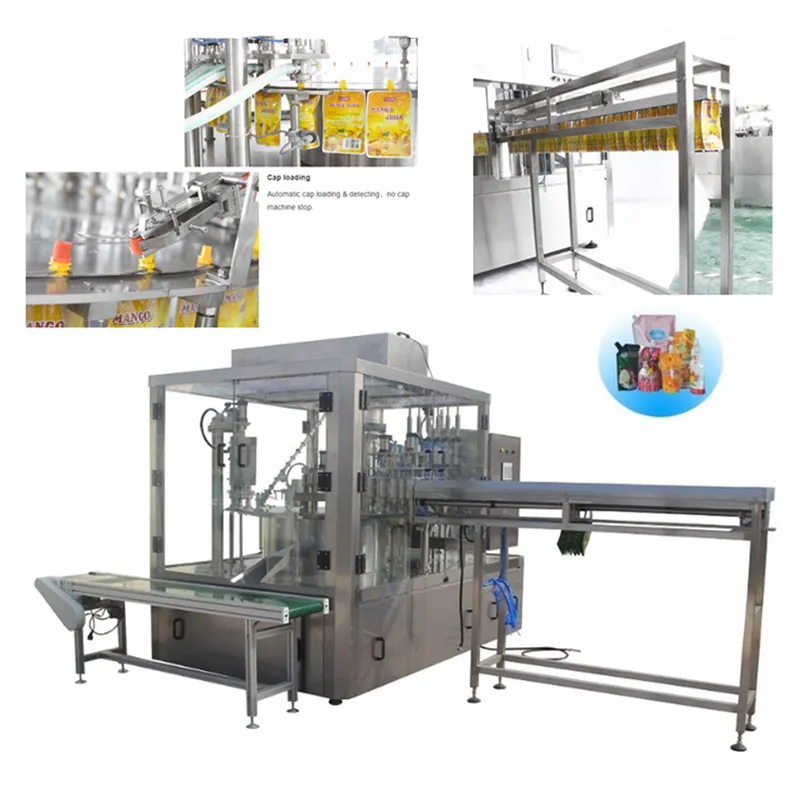

Introduce of Automatic liquid spout pouch filling machine /spout pouch filling capping machine:
Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
High reliability, convenient operation, wide applicability, high performance.
Import control elements, Schneider, Mitsubishi, Ormon, Siemens, pneumatic component: Airtac, Festo, SMC.and they make the system more stable and reliable.
Contact us to get more details.

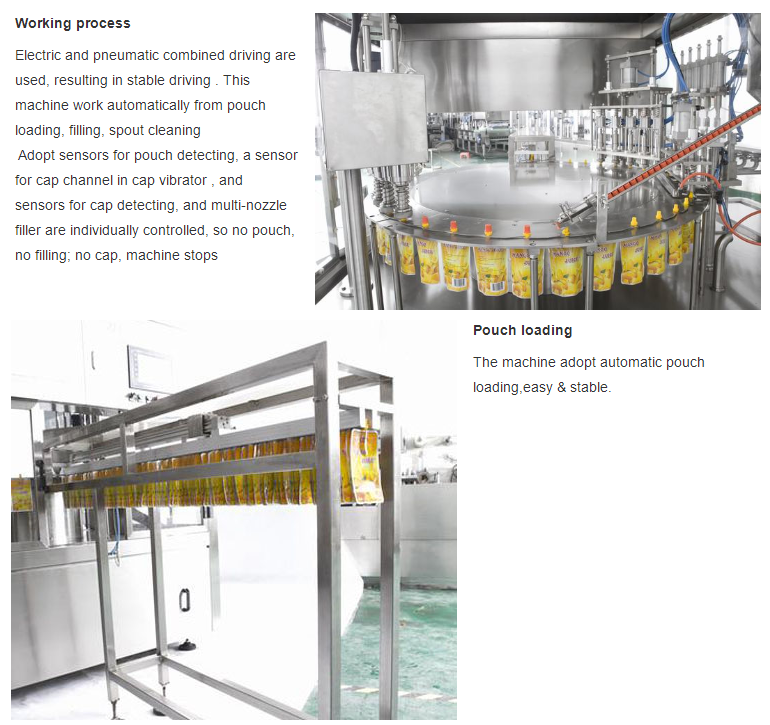

Automaitc pouch loading
Printing - printing machine required, optional feature (can conntect with inkjet printer)
No pouch detection
Vacuum - optional feature

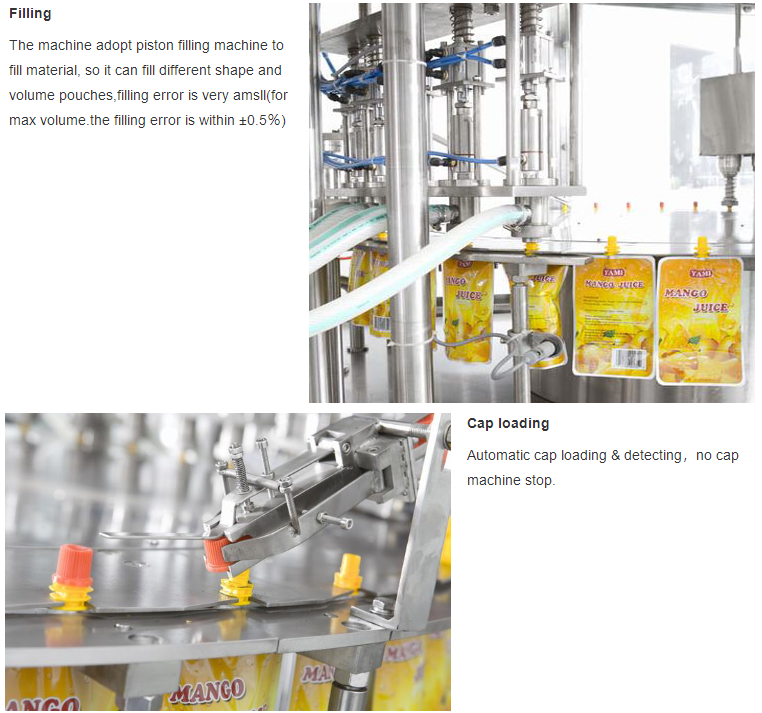

Filling - adopt with leak-proof nozzles
Nitrogen flushing - optional feature
Spout cleaning
Feeding and inserting cap
No cap detection

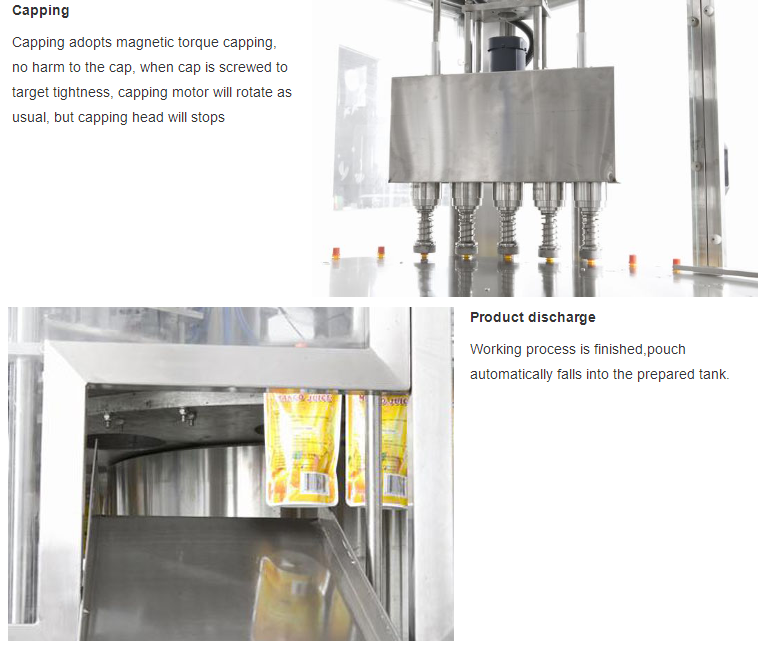

Capping
Discharging
Transport - conveyor belt required, optional feature
Caps feeder to feed caps to spout pouch filling machine automatic;
Whole machine made of stainless steel or frame of machine made of stainless steel;
Air clean system;
Open dust cover door detector to keep production safe;
CIP system fit for spout pouch filling machine;
Conveyor belt to transport finished pouches;
Printing machine to print date or lot numbers;
Air compressor to supply compressed air for spout pouch filling machine running;
Stainless steel pump and pipe to feed product to spout pouch filling machine automaic;
More spare parts ;
Nitrogen generator to supply nitrogen for spout pouch filling machine;
Technical parameters of spout pouch filling machine:
| Name | Model | Filling heads | Capacity (Pouches/hour ) | Filling volume (Can be adjusted) | Error (ml) | Power (KW) | Air source (M3/min) | power source | Weight (KG) |
| spout pouch filling capping machine | KEY-1A | 1 | 800-1000 | 20-500ml | 1% | 1 | 0.6 | customized | 1000 |
| spout pouch filling capping machine | KEY-2A | 2 | 1600-2000 | 20-500ml | 1% | 1.2 | 0.6 | customized | 1200 |
| spout pouch filling capping machine | KEY-3A | 3 | 2400-3000 | 20-500ml | 1% | 1.4 | 0.65 | customized | 1400 |
| spout pouch filling capping machine | KEY-4A | 4 | 3200-4000 | 20-500ml | 1% | 2.0 | 0.65 | customized | 1600 |
| spout pouch filling capping machine | KEY-5A | 5 | 4000-5000 | 20-500ml | 1% | 2.3 | 0.7 | customized | 1800 |
| spout pouch filling capping machine | KEY-6A | 6 | 5000-6000 | 20-500ml | 1% | 2.5 | 0.7 | customized | 2000 |
