Application:
-Powder: Wheat flour, condiment, soup -(By use auger System)
-Granule: Sugar, Rice, Seasoning, pet food, coffee -(By use Volumetric Measure or Scale
-Liquid: Detergent, Shampoo, Rinse, Drinks -(By piston pump or rotary Pump)
-Paste: Retort food -(By spiral pump or rotary Pump)
Different pouches:
Stand up pouch, stand up pouch with spout, Doypack pouch, Gusset stand up pouch with zipper, 4-side sealing pouch, Zipper pouch, etc premade pouches ect.
Features:

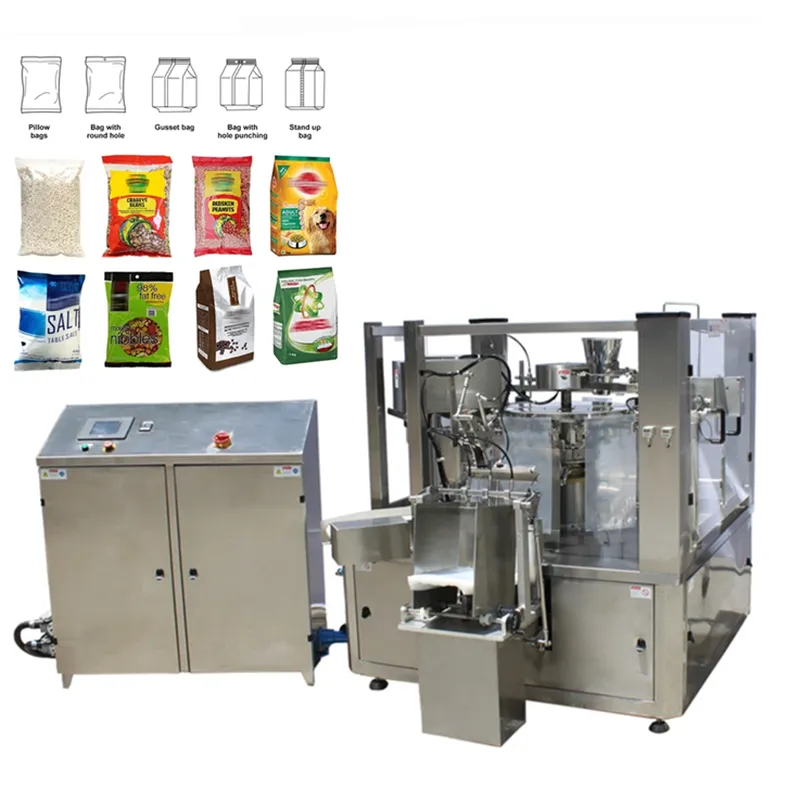

1. Intermittent rotary machine with 8 Stations is designed for handling Pre-made pouches such as Flat and Stand-up Pouches (with / without Zipper)
2. Operating and adjusting via TOUCH SCREEN.
3. Fault indication on the TOUCH SCREEN.
4. Hygienic Construction and Easy cleaning.
5. High quality and long life of all machine part.
6. Integration of various filler, such as Auger filler weighting machine, volumetric doser, Liquid doser, Paste doser and other special doser.
7. Simple integration of peripheral equipment.
Packing Process:
1. Pouch feeding conveyor & pickup the pouch
2. Date coding & Zipper open device (option)
3. Open the bottom of pouch, for self stand pouch
4. Pouch top opening
5. First filling position
6. Second filling position (option)
7. First sealing position
8. Second sealing position (cold seal) and Pouch feed out conveyor
Standard Equipments:
-Bag feeding conveyor
-Bag opening blade with full opening detector
-Deflator
-P. I. D. Temperature controller
-Stainless Steel Construction
-Graphical color touch panel
-Discharge conveyor
Optional Equipments:
1. Zipper opening and closing device
2. Second filling position
3. Safety-guards with safety-switches
4. Date coder (Ribbon or Embossing or ink-jet type)
SPECIFICATION:
| Model No. | KEY-8BT-IV | KEY-8BTXL |
| Pouch size | Width: 130 ~ 250mm, Length: 150 ~ 350mm | Width: 150 ~ 300mm, Length: 200 ~ 500mm |
| Mechanical speed | 20 ~ 45 pouches / min | 15 ~ 35 pouches / min |
| Pouch material | Laminated film | |
| Pouch pattern | Flat, Stand-up, Zipper, Slider-zipper | |
| Safety device | No pouch-No fill - No seal Pouch open error - No fill - No seal Heater disconnection alarm Machine stop at abnormal air pressure Machine stop when safety guard is open or electrical cabinet is open Safety guard Non-open Pouches could be recycled | |
| Power consumption | 220V/ 380V, 3Phase, 50/ 60Hz, 3.8kw | |
| Air consumption | 500N liter / min, 6kg/ cm2 | |
