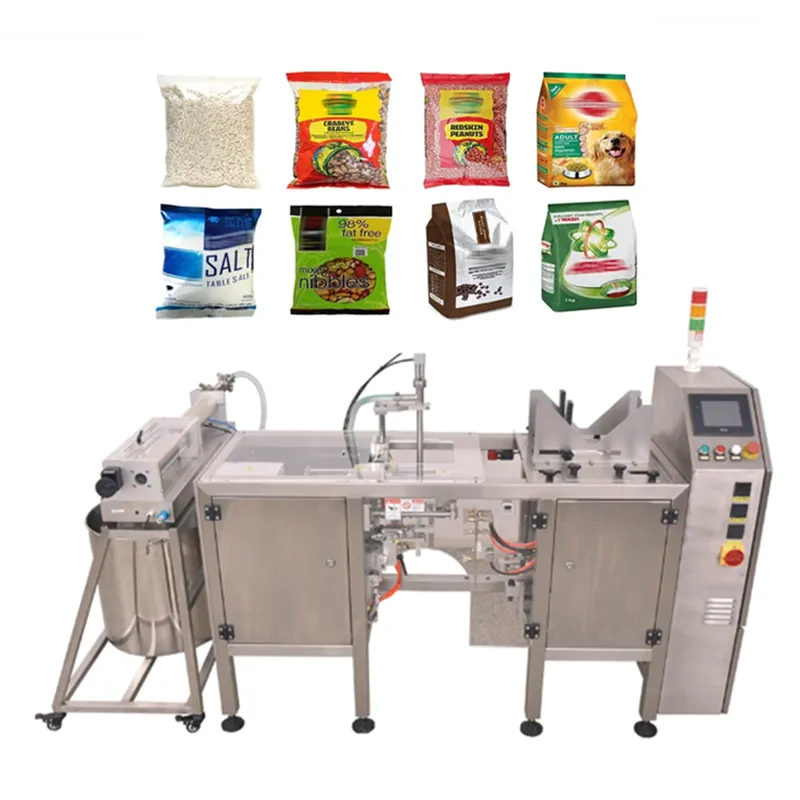

Application: This machine is applicable for dosing powder, granule or liquid into a pre-made pouch and sealing, the detail application description as following :
Applicable Pouches:
Laminate heat sealable pre-made pouches like flat pouch , gusset pouch, normal stand up pouch, or stand up pouch with zipper etc
Applicable Packaging Material:
Laminate Heat sealable packing materials such as OPP/PE,BOPP/OPP/PE,PET/AL etc
Technical Specification
| LY-DB300 | LY-DB430 | LY-Duplex | |
| Pouch Size-Length | 100-300 mm | 100-430 mm | 100-300 mm |
| Pouch Size-Width | 100-300 mm | 100-300 mm | 100-200 mm |
| Packing Speed | 5-15 | 5-15 | 10-30 |
| Reference Filling Range | 5-1500 | 5-2500 | 5-1000 |
| Voltage | AC220V 50/60HZ | AC220V 50/60HZ | AC220V 50/60HZ |
| Power Consumption | 1.5KW | 1.5KW | 1.5KW |
| Compress Air Required | 0.65Mpa | 0.65Mpa | 0.65Mpa |
| Compress Air Consumption | 0.5 m3/min | 0.5 m3/min | 0.5m3/min |
| Dimension | 1750*510*1300 mm | 1750*510*1650 mm | 1750*750*1450 mm |
For liquid products：
For granule products:
For powder products：
