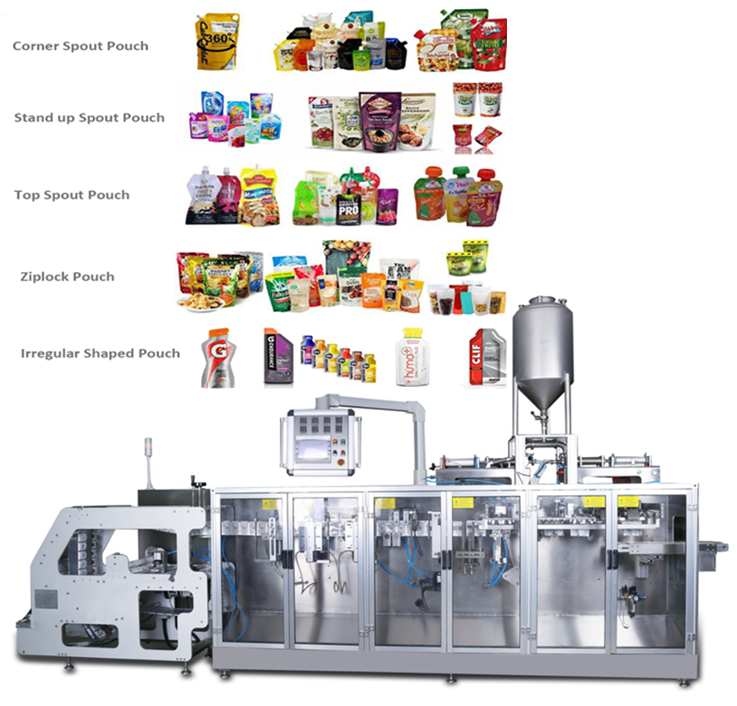

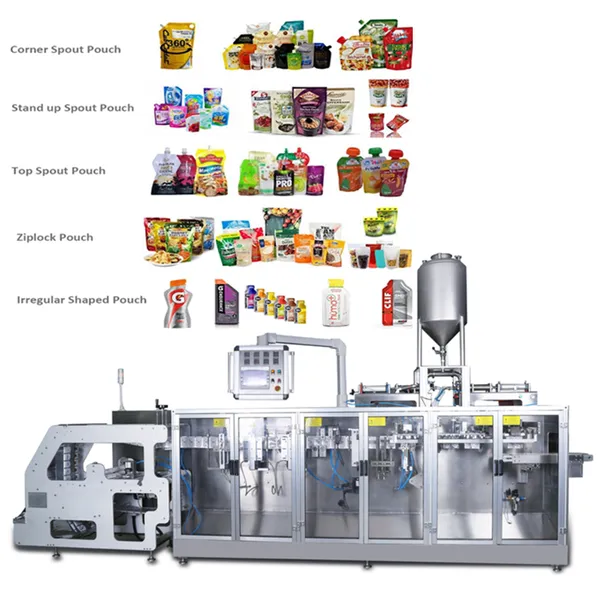

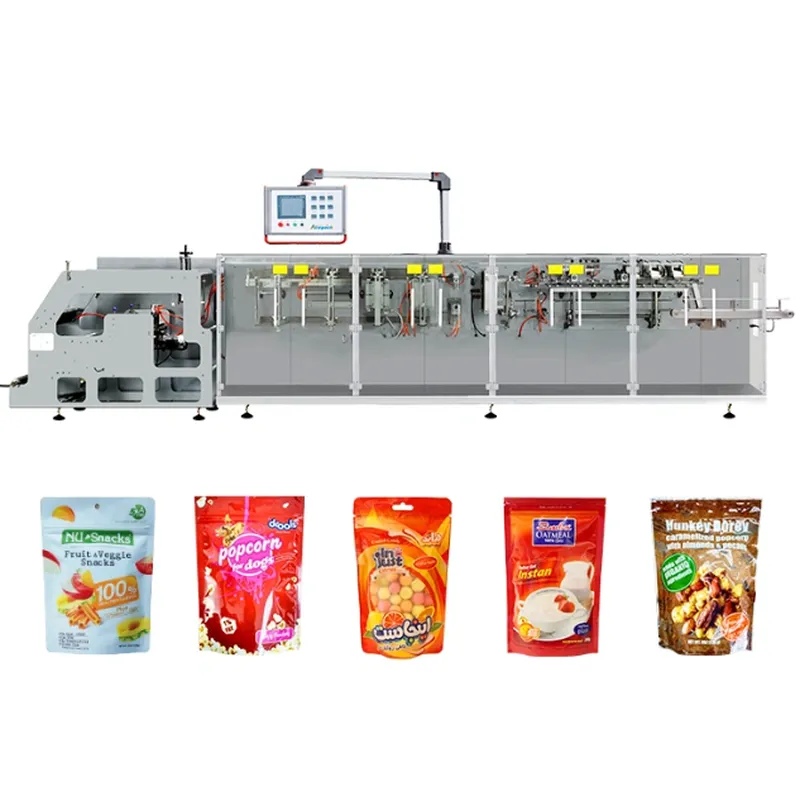

KY-180SZ packaging machine can can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery. It is suitable for filling different products such as powder, granule, tablets, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
Model | Pouch Size | Filling Capacity | Packaging Capacity | Powder | Air Consumption | Machine Dimensions | Weight | Function |
KY-140SZ | 60*90mm(Min) | 500ml | 50-80ppm | 8KW | 200NL/min | 4780mm(L) | 1800kg | Doypack, Shape, Hanging hole, Zipper |
KY -180SZ | 90mm*110mm(Min) | 1200ml | 40-60ppm | 8KW | 200 NL/min | 6450mm(L) | 2300kg | Doy pack, Shape, Hanging hole, Zipper |
KY -240SZ | 100*120mm(Min) | 2000ml | 30-60ppm | 10kw | 300NL/min | 7500mm(L) | 2800kg | Doypack, |
KY -280DSZ | 90*110mm(Min) | 600ml | 80-120ppm | 12KW | 400NL/min | 7800mm(L) | 3400kg | Doypack, zipper |
